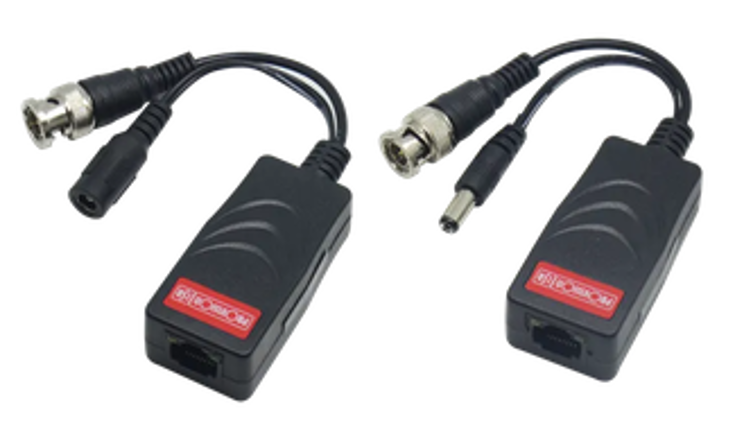

UTP Balun AHD Cameras 300m Video & Power

An accessory that allows you to transmit both high-definition video and power over a single standard network cable (Cat5e/Cat6) for up to 300 meters, making CCTV installations significantly easier.

HOW IT WORKS

Instead of running heavy coaxial cables and separate power wires, this "balun" (balanced-to-unbalanced transformer) lets you use a single, lightweight ethernet cable.

Connection: One balun connects to the camera (sending video & taking 12V DC power), and its twin connects to the DVR/Power supply on the other end.

Compatibility: It works with AHD (Analog High Definition), TVI, CVI, and traditional analog (CVBS) security cameras.

KEY SPECIFICATIONS:

Video Range: Transmits color video up to 200m for AHD/CVBS and up to 300m for CVI/TVI.

Power: Integrates 12VDC power transmission, meaning you don't need a power outlet near the camera.

Passive: It is a passive transceiver, meaning it requires no additional external power to operate.

Protection: Features built-in TVS surge protection to protect your equipment against voltage spikes.
