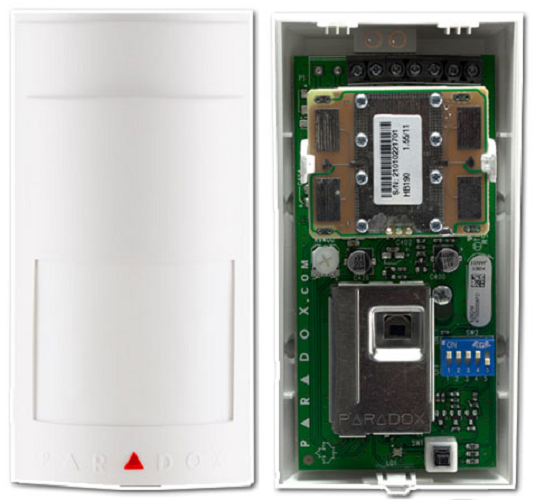

PIR 525dm M/Wave & IR Detect

An advanced, indoor, wired dual-technology motion detector. It combines a Passive Infrared (PIR) sensor and a Microwave (MW) sensor. To trigger an alarm, both sensors must detect movement simultaneously, which virtually eliminates false alarms.

KEY FEATURES & SPECIFICATIONS:

• Coverage Area: 12 meters × 12 meters with a 90° viewing angle.
• Anti-Masking Detection: Detects if an intruder attempts to blind, cover, or spray the sensor's lens, triggering a tamper or alarm.
• Dynamic Proximity: Detects highly specific close-proximity movements (less than 0.75m / 2.5ft).
• Adjustable Microwave Range: Allows the installer to manually adjust the microwave detection distance to prevent the signal from penetrating walls.
• Flexible Pulse Settings: Features auto-pulse settings (Normal and High) to reject false alarms based on environmental conditions.
• Installer Test Mode: Enables independent testing of both the microwave and PIR sensors
